Description

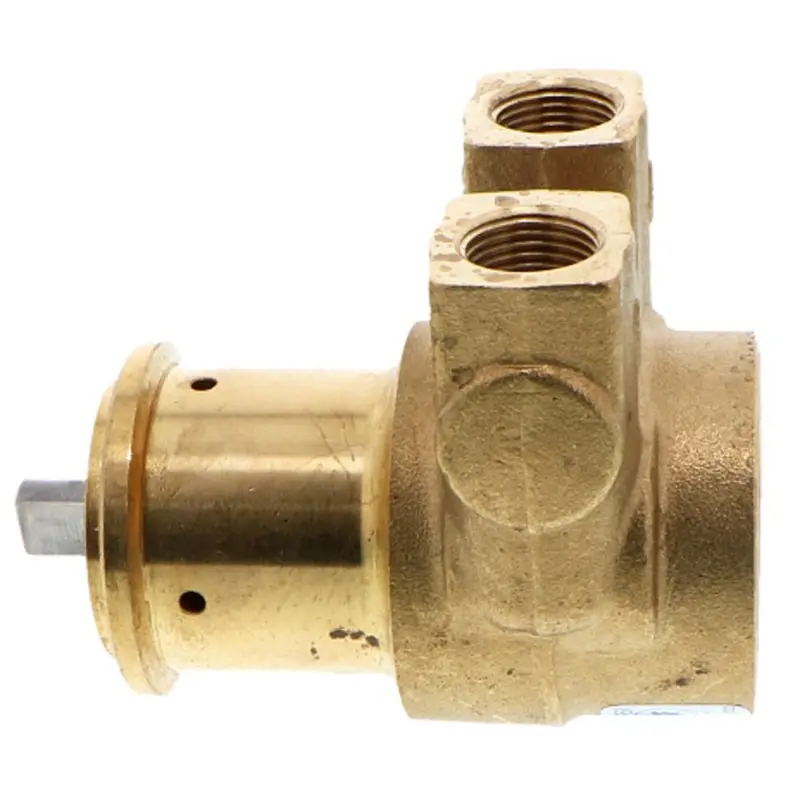

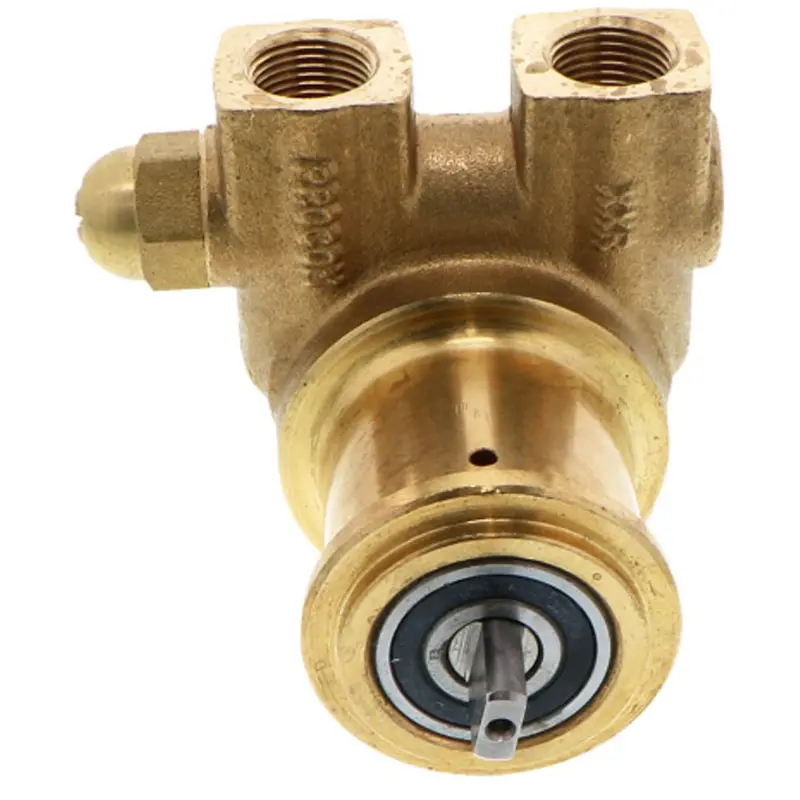

The Procon Pump NSF Brass 60 GPH 3/8″ NPT – 130 psi PRV w/ .188″ Double Flat Drive (Clamp-on) rotary vane pump is a positive displacement pump. This Series 2 Procon pump is brass with a .188″ double flat drive. The inlet and outlet ports are 3/8″ NPT and the pump has a flow-rate of 60 gallons per hour. The seal configuration for the 112A060F11CB130 uses Nitrile Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 2 pumps are self-priming, so there is virtually no maintenance. The pressure relief valve for this pump is set for 130 PSI. The 112A060F11CB130 pump is designed to be directly connected to the motor with a stainless steel clamp.
Additional Specifications:
- Capacity: 60 GPH
- Nominal Speed: 1725 RPM
- NSF Standard 169 listed
- Relief Valve: 130 PSI
- Rotation: Clockwise
- Weight: 2.5 lbs
- Port Size: 3/8″ NPT Inlet and Outlet
- Double Flat Drive: .188″
