Description

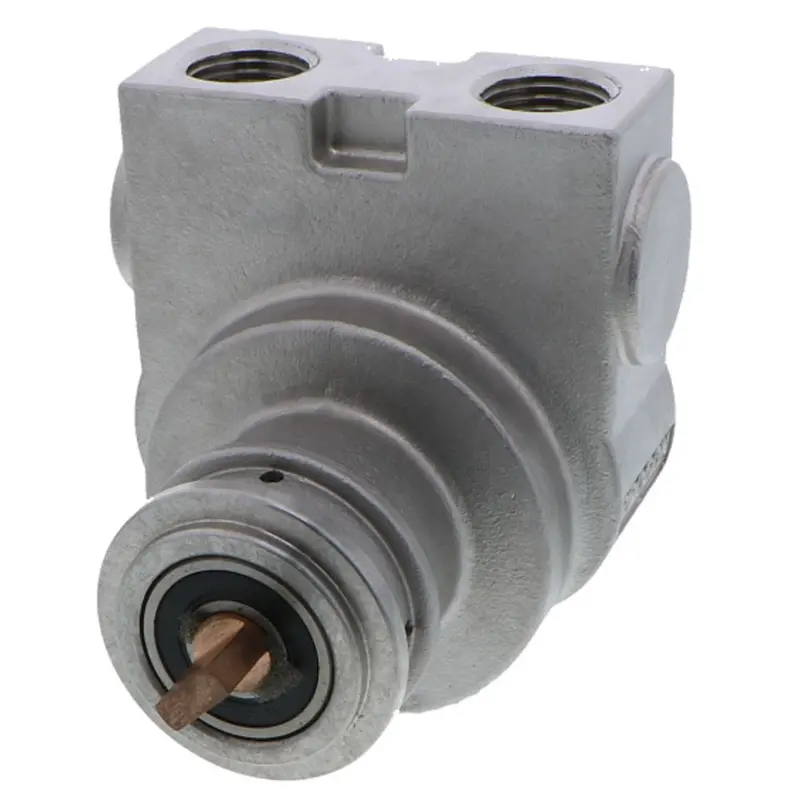

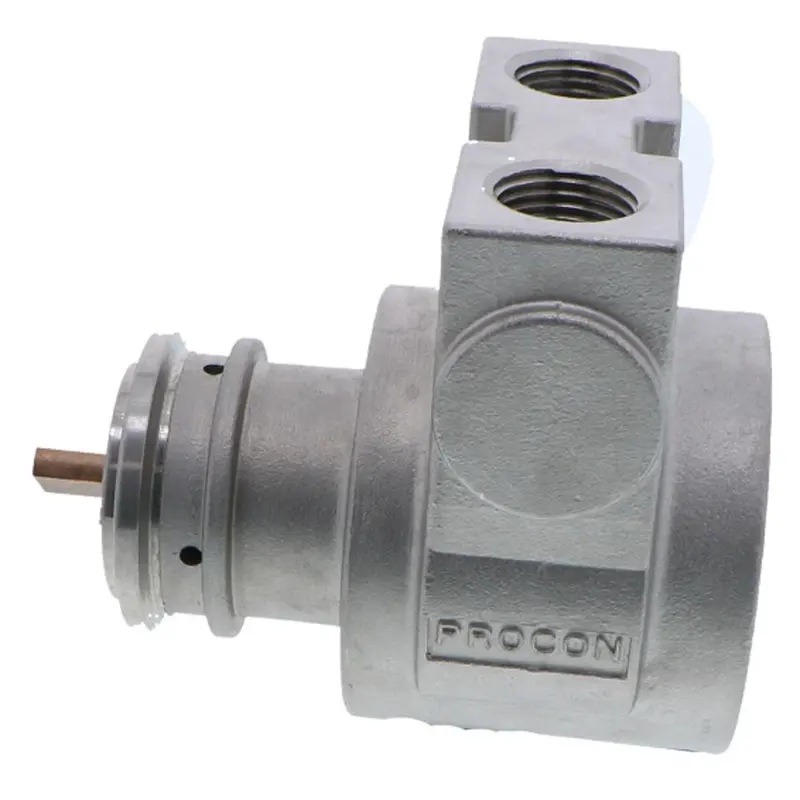

Procon 105B190F31XX rotary vane pump is a positive displacement pump. This Series 5 Procon pump is stainless steel with 1143 Bronze Coupling. The inlet and outlet ports are 1/2″ NPT and the pump has a flow-rate of 190 gallons per hour.
Features:
The seal configuration for the 105B190F31XX uses Nitrile Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 5 pumps are self-priming, so there is virtually no maintenance. The maximum discharge pressure for this pump is 250 PSI. The 105B190F31XX pump is designed to be directly connected to the motor with a stainless steel clamp.
Additional Specifications:
- Capacity: 190 GPH
- Nominal Speed: 1725 RPM
- Maximum Discharge Pressure: 250 PSI
- Rotation: clockwise/slinger
- Weight: 2.5 lbs
- Port Size: 1/2″ NPT Inlet and Outlet
- Bronze Coupler
