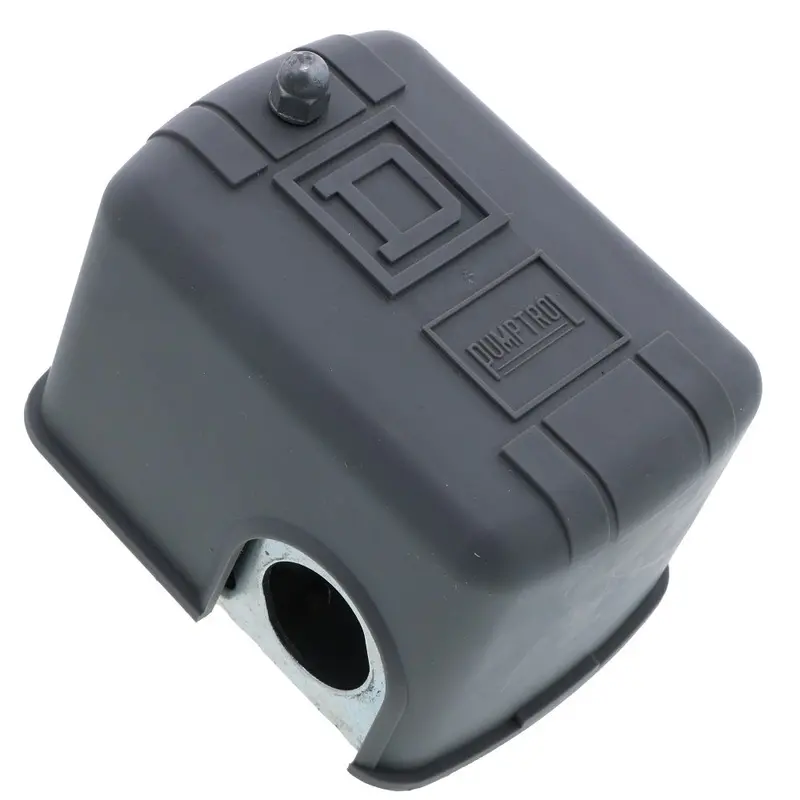

Square D 20/40 Psi Dpst Diaphragm Pressure Switch – Model 9013Fsg2J20

Description

Square D Pumptrol 9013FSG well tank pressure switches are the industry standard for household well installations. They are easy to install, have adjustable cut-in and cut-out settings and can control both submersible pumps and jet pumps.

Specifications:

• Factory Set Cut-In Pressure: 20 psi
• Factory Set Cut-Out Pressure: 40 psi
• Pressure Connection: 1/4″ FNPT
• Maximum Voltage Rating: 575VAC
• Amps: 10A
• Maximum Allowable Pressure: 220 psig
• Actuator Type: Diaphragm
• Diaphragm: Nitrile (Buna N)
• UL Listed and CSA Certified
• Indoor Use
