Procon Nsf-Certified Stainless Steel Booster Pump – 100 Gph, 3/8″ Npt Inlet, 250 Psi Pressure Relief Valve, .188″ Double Flat Drive (Clamp-On)

Description

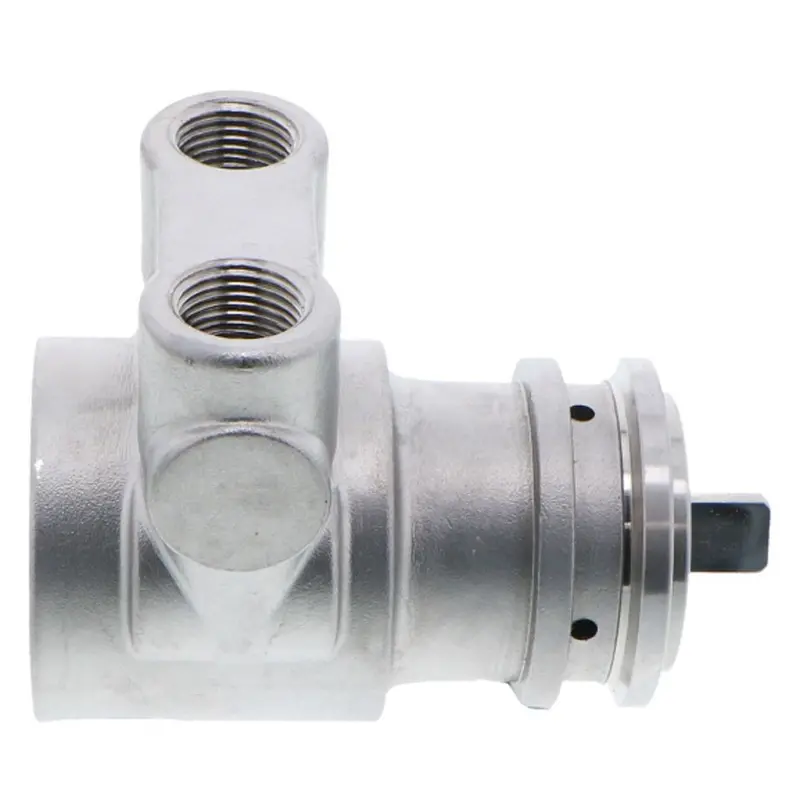

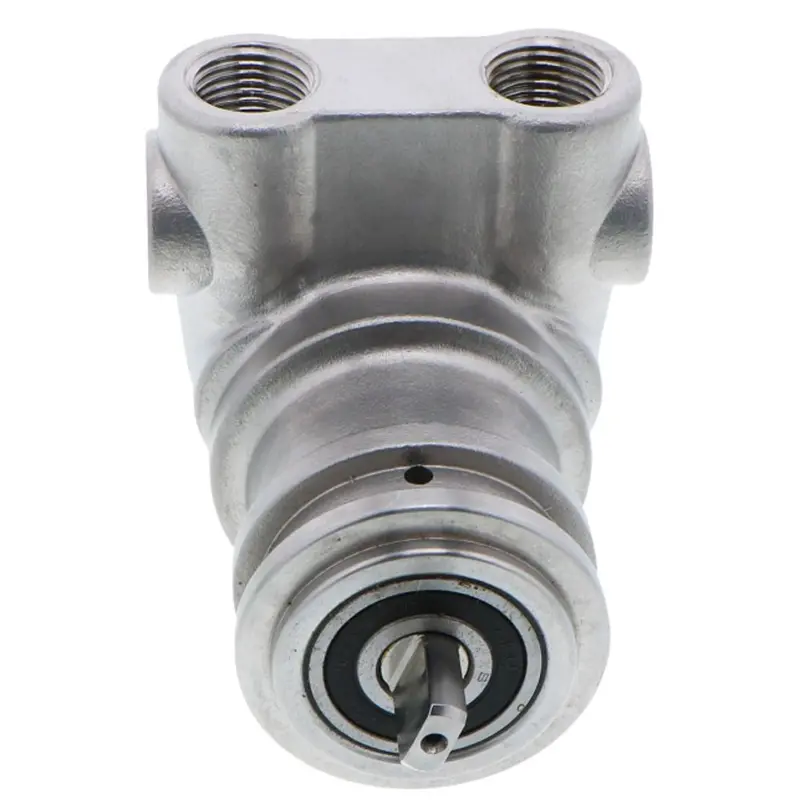

The Procon Pump NSF Stainless Steel 100 GPH 3/8″ NPT – 250 psi PRV w/ .188″ Double Flat Drive (Clamp-on) rotary vane pump is a positive displacement pump. This Series 3 Procon pump is stainless steel with 1143 Bronze Coupling. The inlet and outlet ports are 3/8″ NPT and the pump has a flow-rate of 100 gallons per hour. The seal configuration for the 113A100F31BA250 uses Nitrile Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 3 pumps are self-priming, so there is virtually no maintenance. The maximum discharge pressure for this pump is 250 PSI. The 113A100F31BA250 pump is designed to be directly connected to the motor with a stainless steel clamp.

Specifications:

• Weight: 2.5 lbs
• Capacity: 100 GPH
• Nominal Speed: 1725 RPM
• Port Size: 3/8″ NPT Inlet and Outlet
• Maximum Discharge Pressure: 250 PSI
• Pressure Relief Setting: 250 PSI
• Rotation: Clockwise / Slinger
• Body: Stainless Steel
