Description

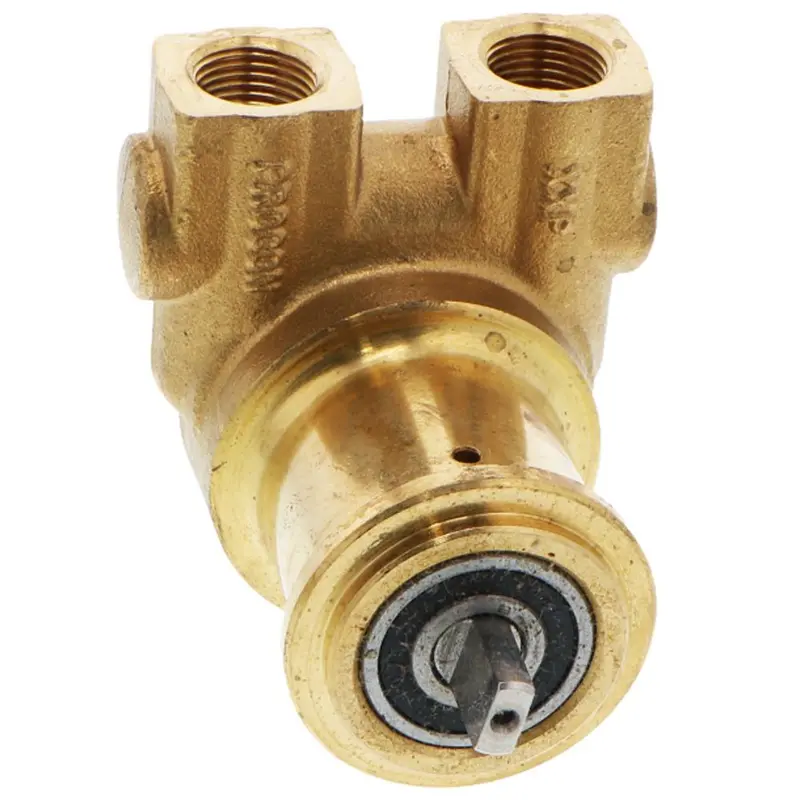

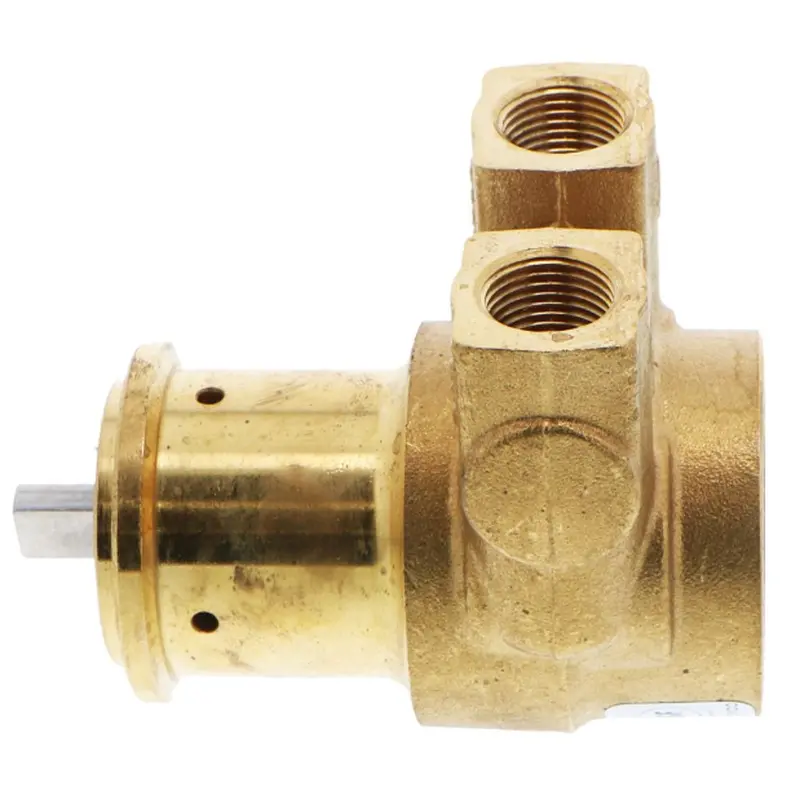

The Procon Pump NSF Brass 100 GPH 3/8″ NPT w/ .188″ Double Flat Drive (Clamp-on) rotary vane pump is a positive displacement pump. This Series 2 Procon pump is brass with a .188″ double flat drive. The inlet and outlet ports are 3/8″ NPT and the pump has a flow-rate of 100 gallons per hour. The seal configuration for the 112A100F11XX uses Nitrile Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 2 pumps are self-priming, so there is virtually no maintenance. The maximum discharge pressure for this pump is 250 PSI. The 112A100F11XX pump is designed to be directly connected to the motor with a stainless steel clamp.
Specifications:
- Capacity: 100 GPH
- Nominal Speed: 1725 RPM
- Maximum Discharge Pressure: 250 PSI
- Rotation: Clockwise
- Weight: 2.5 lbs
- Port Size: 3/8″ NPT Inlet and Outlet
- Double Flat Drive: .188″
