Description

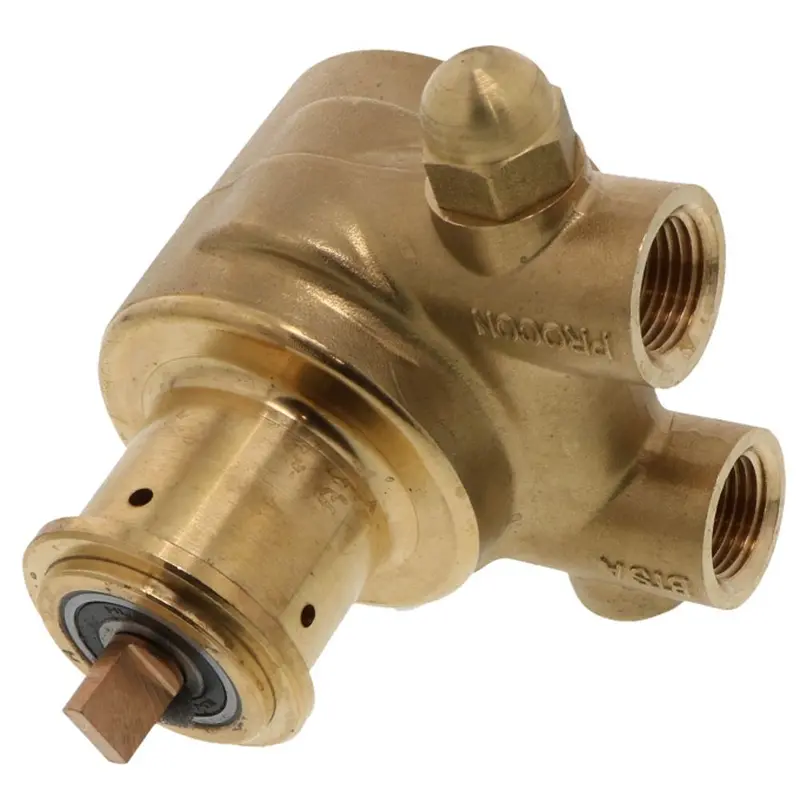

The Procon Pump NSF Brass 240 GPH 1/2″ NPT – 225 psi PRV w/ 1143 Bronze Coupling (Clamp-on) rotary vane pump is a positive displacement pump. This Series 4 Procon pump is brass with a .188″ double flat drive. The inlet and outlet ports are 3/8″ NPT, with an intergral strainer, and the pump has a flow-rate of 240 gallons per hour. The seal configuration for the 114B240F11BA225 uses Nitrile Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 2 pumps are self-priming, so there is virtually no maintenance. The default pressure relief valve setting for this pump is 225 PSI. The 114B240F11BA225 pump is designed to be directly connected to the motor with a stainless steel clamp.
Specifications:
- Capacity: 240 GPH
- Nominal Speed: 1725 RPM
- Relief Valve: 225 PSI
- Rotation: Clockwise
- Weight: 2.5 lbs
- Port Size: 1/2″ NPT Inlet and Outlet with intergral strainer
- Double Flat Drive: .188″
