Description

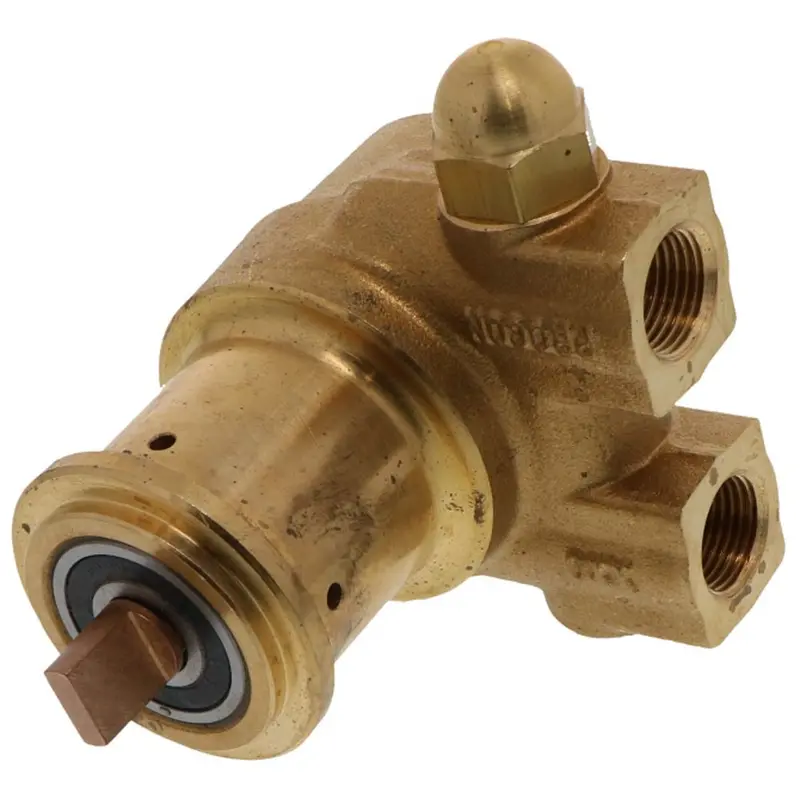

The Procon Pump NSF Brass 100 GPH 3/8″ NPT – 250 psi PRV w/ 1143 Bronze Coupling (Clamp-on) is a positive displacement pump. This Series 2 Procon pump is brass with a .188″ double flat drive and 1143 bronze coupling. The inlet and outlet ports are 3/8″ NPT and the pump has a flow-rate of 100 gallons per hour. The seal configuration for the 112B100F11BA250 uses Nitrile Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 2 pumps are self-priming, so there is virtually no maintenance. The pressure relief valve for this pump is set for 250 PSI. The 112B100F11BA250 pump is designed to be directly connected to the motor with a stainless steel clamp.
Leak-free. The seal configuration uses Nitrile Type 21, which will prevent leakage.
NSF Certified.
NSF/Ansi Standard 169 for special purpose food equipment and devices.
Typical Applications. Beverage, espresso/coffee, cold carb circulation, reverse osmosis, beer chillers, pesticide systems, and solar applications.
Low Maintenance. The Series 2 pumps are self-priming, so there is virtually no maintenance.
