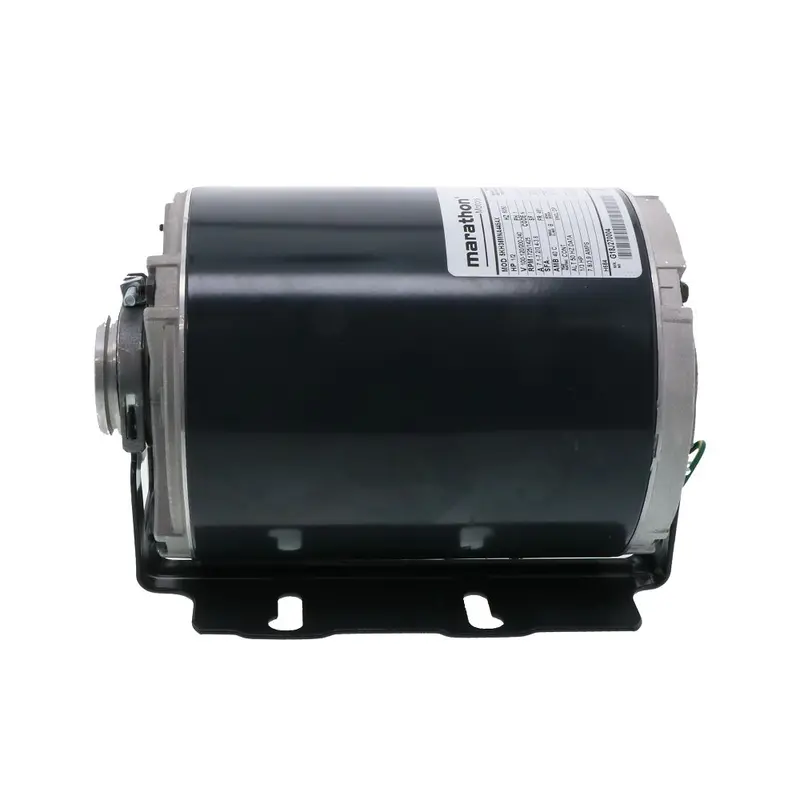

Marathon 871 Nema 48Yz Frame Motor For Ro Systems & Carbonators – 1/2 Hp, Dual-Voltage (100–120V / 230V Ac)

Description

This 1/2 HP RO/Carbonator Motor is manufactured by Marathon Electric to be completely interchangeable with OEM units. The H684 motor features an automatic reset thermal protector and is UL recognized and CSA certified. The pump can be mounted vertically or horizontally to suit your application.
Features:

• Procon Carbonator Pump Motors
• Auto reset thermal protection
• Clamp-on pump mount
• Voltag: 100-120/200-240V AC single phase
• Rotation: counterclockwise (can be reversed to clockwise)
• Procon Stock Number: 871
• Marathon Model Number: 5KH36MNA445X
• Marathon Catalog Number: H684
• Manufactured by Marathon Electric (formerly Manufactured by GE)
• Formerly known as GE model number 5KH36MNB637X

Specifications:

• Power: 1/2 HP
• RPM: 1725 RPM @ 60 Hz / 1425 RPM @ 50 Hz
• NEMA Frame: 48YZ
• Voltage: 100-115 / 200-240 VAC
• Hertz: 60 / 50 Hz
• Full Load Amps: 7.2
• Type: Split Phase
• Enclosure: Open Drip Proof
• Insulation: Class B
• Ambient: 40 C
• Shaft Diameter: 5/8″ Slotted
• Shaft Length: 1-1/2″
