Dr. Hahn Precision Hinges For Upvc And Timber Doors

Description

Dr Hahn Hinges

KT-V 6R (18-23mm) Silver (RAL 9465) 120kg Rated Door Hinge.

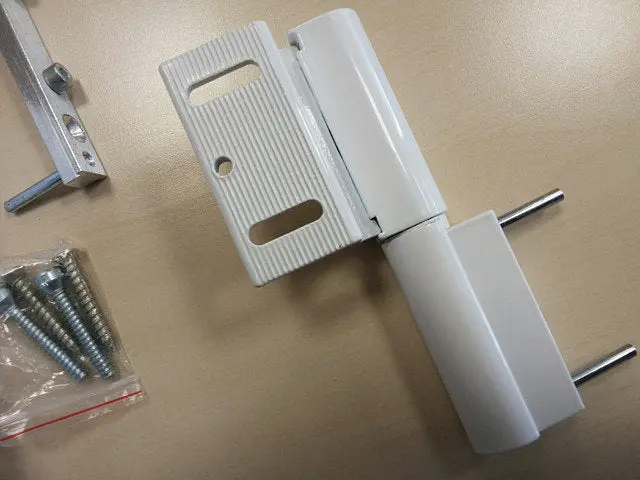

KT-R (16/3mm) White, Black & Silver 120kg Rated Door Hinges.

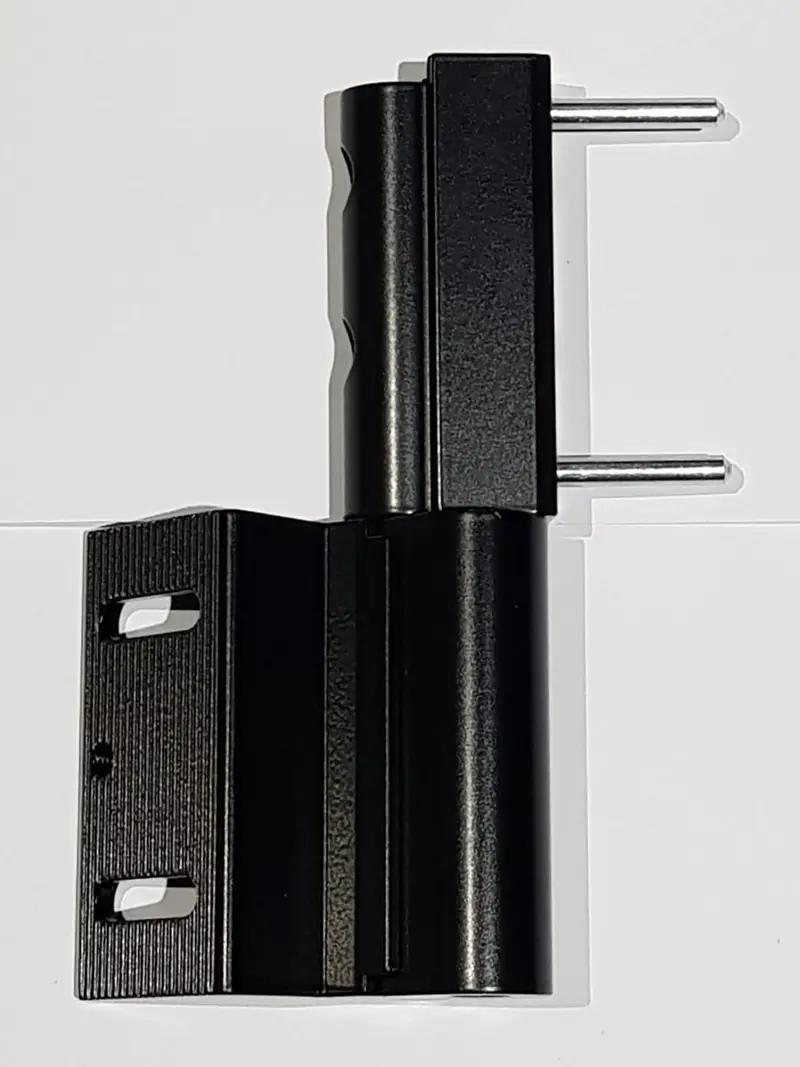

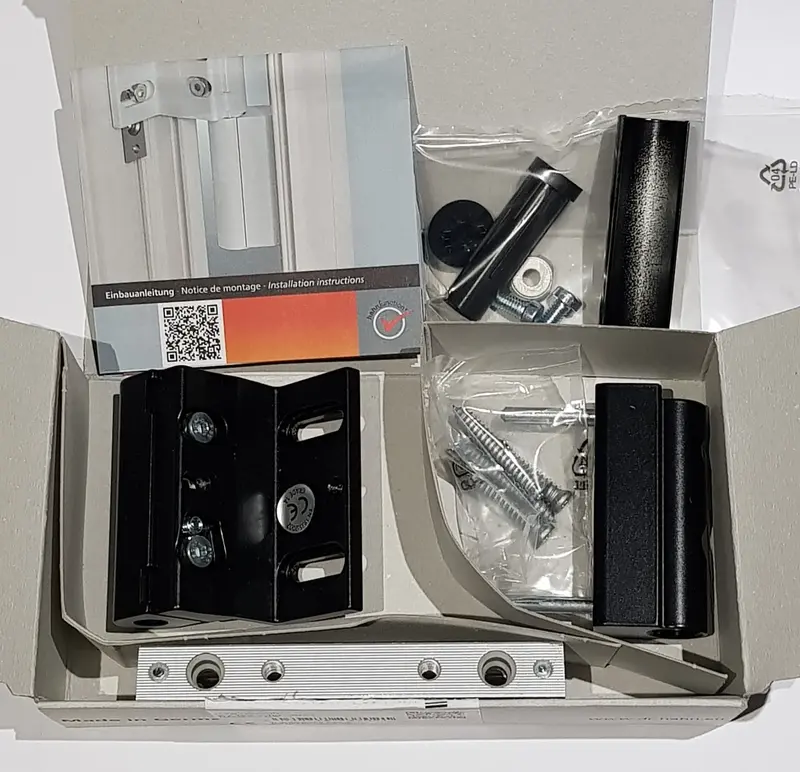

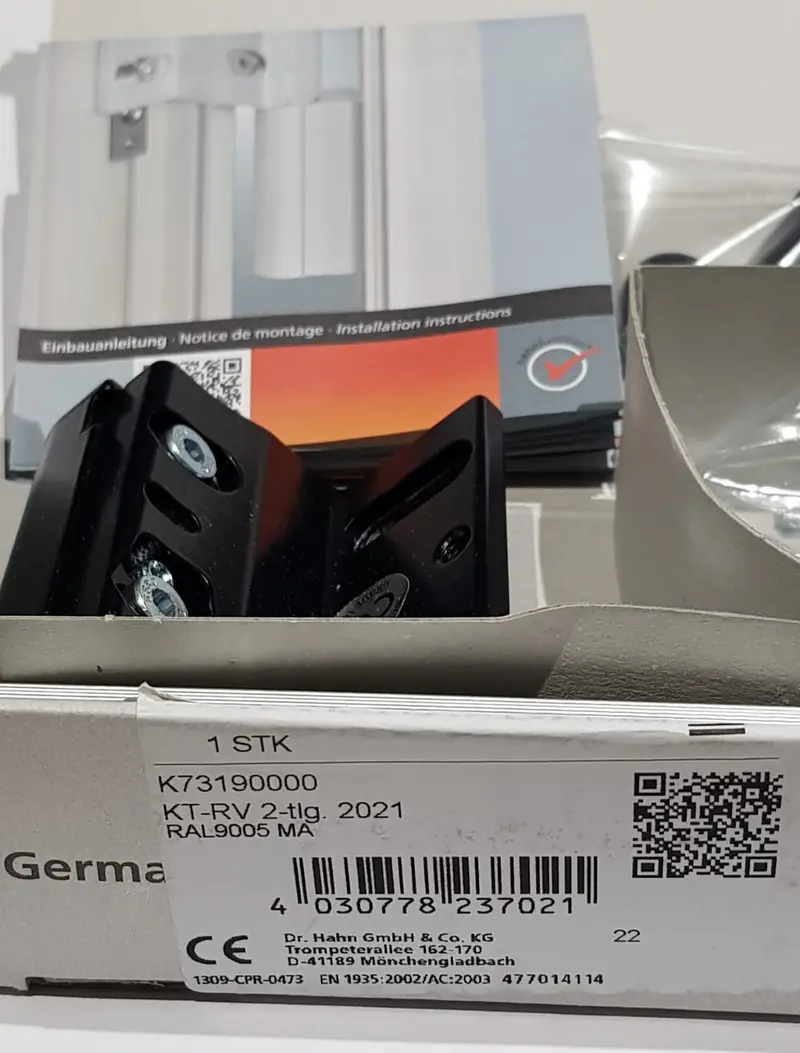

KT-RV (16/3mm) White, Black & Silver 100kg Rated Door Hinges.
■ Material:
Manufactured based on extruded aluminium profiles
■ Fastening method:

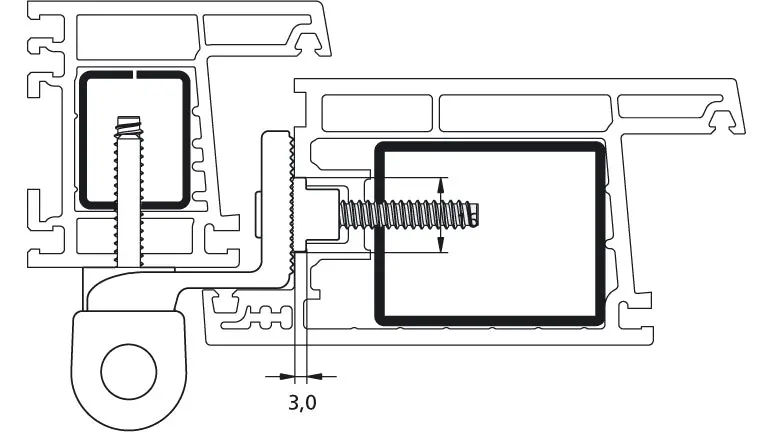

Directly mounted in frame and door
■ Load capacity:
Depending on the profile design
– 2-parted max. 120 kg
– 3-parted max. 160 kg
■ Adjustability:
Adjustable in six directions:
– Horizontal adjustment, continuously ±3 mm
– Height adjustment, continuously
2-parted +3 mm / –1 mm, 3-parted ±3 mm
– Adjustment of sealing pressure ±0.5 mm
2-parted ±0.4 mm, 3-parted
■ Certificates:
– CE-certified according to EN 1935:2002
hinge class 14
– Exception: KT-RV, 3-parted – hinge class 11
– SKG 2-star pending
■ Colours:
Hinges available in EV1 and RAL colours
■ Maximum opening angle is 180°
■ Can be used on both left or right-hand doors
KT-EV (18-23mm) White, Black & Silver 120kg Rated Door Hinges.
