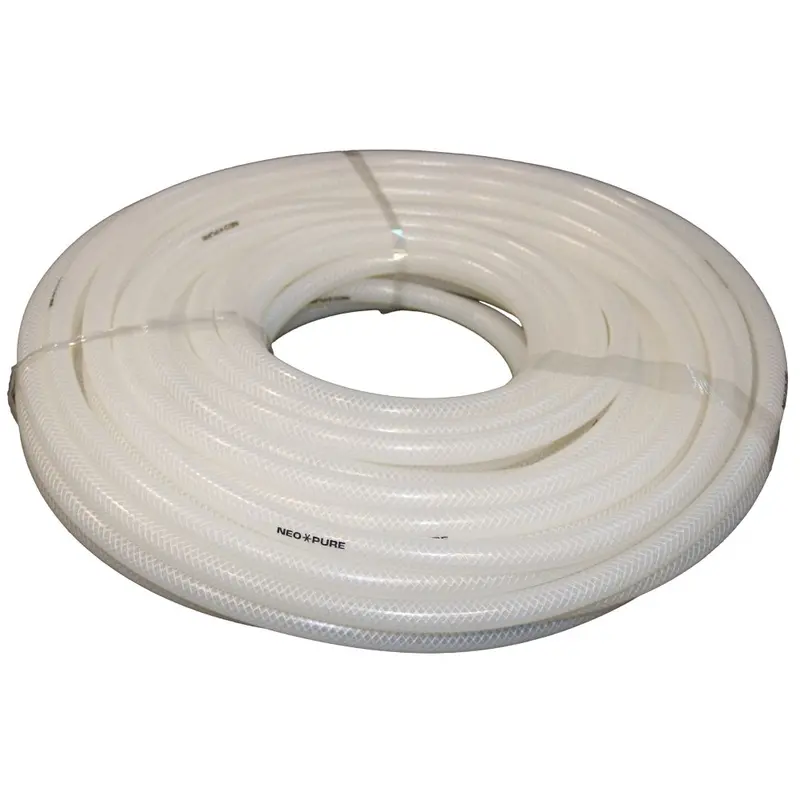

1-Foot Braid-Reinforced Silicone Tubing — 5/16″ Id × 0.592″ Od (Silbrade)

Description

Silbrade® Silicone Tubing enables silicone tubing to handle increased pressure applications as well as offering outstanding resistance to temperature extremes and is made of FDA-sanctioned ingredients. Silbrade® is a flexible design and allows excellent bend radii and permits installation in restricted spaces without impeding flow.
Specifications:

• Tubing ID: 5/16″
• Tubing OD: 0.592″
• Tubing Material: Peroxide-Cured Silicone with mesh polyester braid
• Temperature Range: -80° – 350° F
• Working Pressure: 183 psi @ 70° F
• Made from FDA-sanctioned ingredients
• Odorless, tasteless and inert
• Resists UV, ozone, gases and moisture
• NSF 51 certified for food equipment materials
• Coil Length: 100’*

Applications:

• Adhesive LInes
• Beverage Service
• Bottle Filling
• Chemical Feeds
• Deionized Water Treatment
• Fermenter Lines
• Hot Fill Lines
• Food Handling
• Laboratory
• Resin Feeds
• Stirring Vessels
• Viscous Material Handling

Notes:
* Any length of tubing that is less than a full coil must be custom cut and is non-returnable. Only complete, unaltered coils may be returned.
** Orders for lengths greater than 100′ will receive full coil(s). Any remaining length will be shipped as a separate segment.
